Digital Analytical Balance FA2204E 220g – 0.0001g Precision Laboratory Analytical Balance
The Digital Analytical Balance FA2204E is a high-precision laboratory weighing instrument designed for accurate measurement of small samples in research, analytical chemistry, pharmaceutical, educational, and quality control laboratories. With a maximum weighing capacity of 220g and a readability of 0.0001g (0.1mg), this precision analytical balance provides reliable and consistent weighing performance. The balance features a sensitive electromagnetic force sensor, external calibration, LCD display, tare function, unit conversion, and a protective glass draft shield for stable and accurate laboratory weighing.
Key Features
- High Precision Weighing: Provides 0.0001g (0.1mg) readability for accurate measurement of small samples.
- 220g Maximum Capacity: Suitable for weighing chemicals, powders, samples, and other laboratory materials.
- Electromagnetic Force Sensor: Delivers stable and precise weighing performance for laboratory applications.
- External Calibration: Allows calibration using a certified external calibration weight.
- LCD Display: Provides clear visibility of weighing results and operating information.

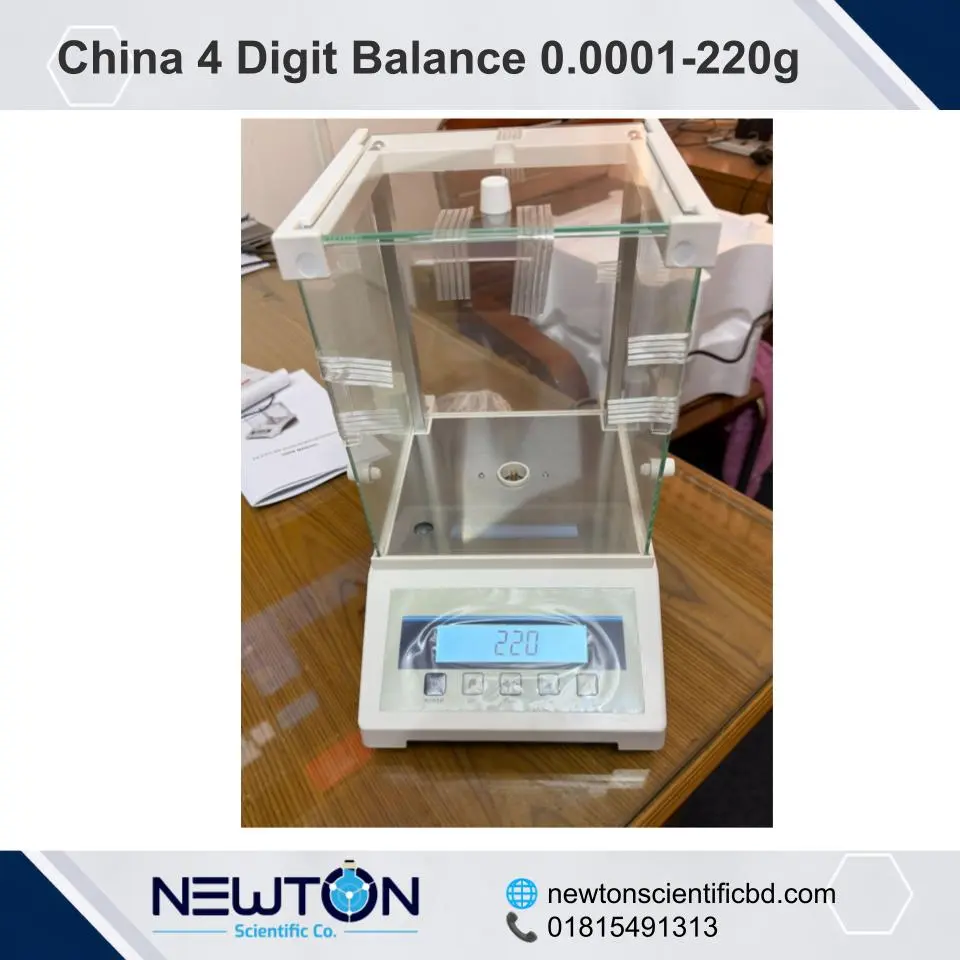

- Glass Draft Shield: Helps reduce the effect of air movement and environmental disturbances during weighing.
- Multiple Weighing Functions: Includes tare, counting, unit conversion, and percentage weighing functions.
- Fast Stabilization: Provides stable readings in approximately 3 seconds under suitable operating conditions.
- RS232 Interface: Supports data communication with compatible computers, printers, or external devices.
- Compact Laboratory Design: Suitable for routine use in research, educational, industrial, and quality control laboratories.
Specifications
| Specification |
Details |
| Model |
FA2204E |
| Product Type |
Digital Analytical Balance |
| Origin |
China |
| Maximum Capacity |
220 g |
| Readability |
0.0001 g (0.1 mg) |
| Minimum Weighing |
0.0004 g |
| Repeatability |
±0.0002 g |
| Linearity |
±0.0003 g |
| Stabilization Time |
Approximately ≤3 seconds |
| Weighing Pan Size |
Ø80 mm |
| Calibration |
External Calibration |
| Sensor Type |
Electromagnetic Force Sensor |
| Display |
LCD Display with Backlight |
| Operating Temperature |
5°C to 35°C |
| Interface |
RS232C |
| Draft Shield Size |
Approximately 180 x 175 x 200 mm |
| Dimensions |
Approximately 300 x 200 x 295 mm |
How to Use & Calibration
- Place the analytical balance on a stable, level surface away from vibration and strong air currents.
- Connect the balance to the power supply and allow the instrument to stabilize before use.
- Place the certified calibration weight on the weighing pan and perform external calibration when required.
- Place the sample carefully on the weighing pan and close the draft shield doors.
- Wait for the stable reading indicator and record the displayed measurement.
- Use the tare function to reset the display when weighing samples in a container.
Applications
- Analytical chemistry laboratories
- Pharmaceutical research and quality control
- Chemical sample preparation
- University and educational laboratories
- Research and development laboratories
- Industrial quality control
- Material and product testing
- Precision laboratory weighing
What’s Included?
- 1x Digital Analytical Balance FA2204E
- 1x Glass Draft Shield
- 1x Weighing Pan
- 1x External Calibration Weight
- 1x AC Adapter
- 1x User Instruction Manual
Why Choose Digital Analytical Balance FA2204E?
The Digital Analytical Balance FA2204E is an excellent choice for laboratories requiring accurate and repeatable measurement of small samples. With its 220g capacity, 0.0001g readability, electromagnetic force sensor, external calibration, glass draft shield, and multiple weighing functions, this analytical balance delivers reliable performance for professional laboratory applications. It is suitable for pharmaceutical, chemical, educational, research, industrial, and quality control laboratories looking for a dependable 0.1mg precision analytical balance.
